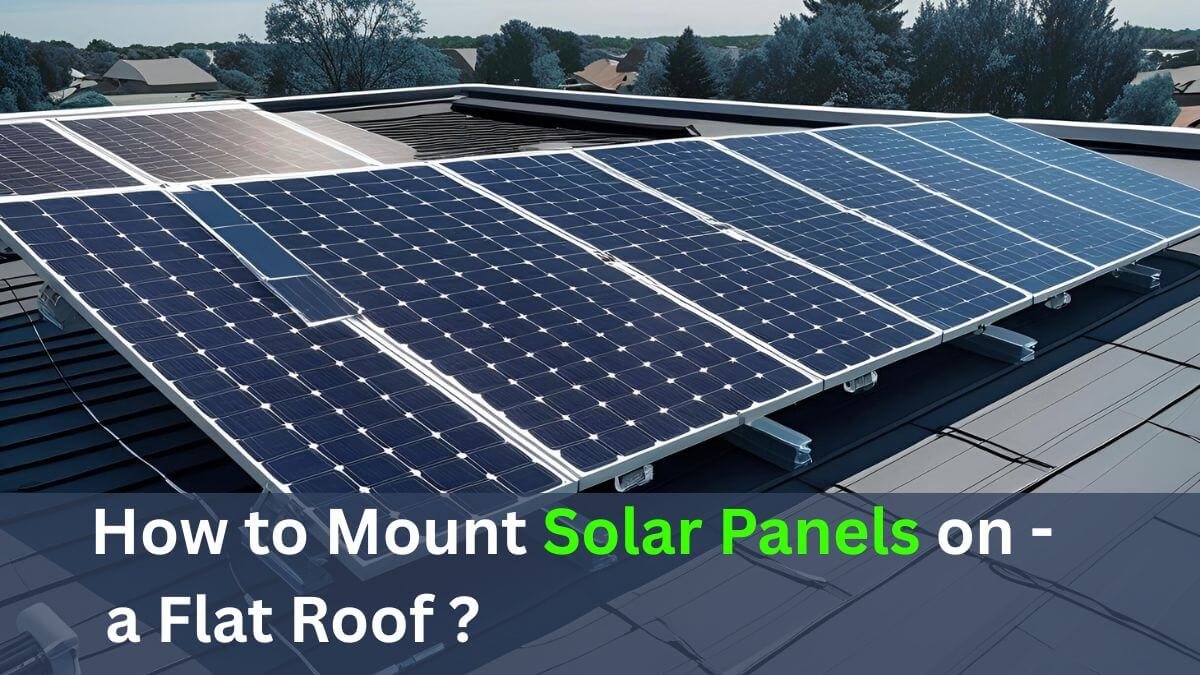

Flat roofs are becoming a popular choice for solar panel installations, especially for homeowners and businesses looking to maximize energy efficiency. But mounting solar panels on a flat roof isn’t as simple as slapping them on; poor installation can lead to leaks, wind damage, and reduced energy output.
In this guide, I will teach you about the best solar panel flat roof mounting techniques, including tools, step-by-step installation, tilt angles, and mistakes to avoid. By the end, you’ll know how to secure your panels for optimal sun exposure and long-term durability.
- 【Premium Material,23.5% Impressive Conversion Efficiency】:Our 100W solar panel for camping is engineered with premium A+…
- 【Versatile Output and Wide Compatibility】:100W foldable solar panel comes with a controller which is equipped with 3 ver…
- 【Long-lasting and IP67 Waterproof】:100W folding solar panel utilizes ETFE coating material, ensuring waterproof, dustpro…
- 【Solar Panels Charger】The maximum output of each port is 5V/3A , Luvknit 30w charger allows you to charge multiple devic…
- 【Higher Solar Conversion】 Upgraded folding solar panels convert up to 24% of solar power into free energy in enough sunl…
- 【Wide Compatibility】Luvknit USB solar panel charger offers a tiny power plant that can generate power for your phone (An…
- 30W Solar Panels：SOLUPUP solar panels utilize multi-layer cell technology to capture energy from the sun and achieve a h…
- Ultra-Fast Charging：USB-A and Type-C Outputs (5V/3A 15W(MAX)) are capable of charging most of portable electronic device…
- Portable Solar Panel：The solar panel only weighs about 2.4 lb, which is very lightweight. The folded size is 11.61inches…
Is Flat Roof Mounting Efficient?
Yes! When properly tilted, flat-roof solar arrays can be just as efficient as pitched roof systems. In fact:
| Feature | Flat Roof | Pitched Roof |
| Orientation Control | ✅ Full Control | ❌ Limited by Roof Angle |
| Maintenance Access | ✅ Easier | ❌ More Hazardous |
| Aesthetic Visibility | ✅ Less Visible | ❌ Often Visible |
🔍 Pro Tip: The ideal tilt angle is usually 10-30°, depending on your latitude.
Solar Panel Flat Roof Mounting Tools & Materials Needed
Here’s a complete checklist to gather before you start:
🔧 Tools
- Cordless drill + bits
- Torque wrench
- Level and measuring tape
- Safety harness or guardrails (if needed)
🧱 Materials
- Flat roof solar panel racking system (ballasted or anchored)
- Solar panels (sized for your energy needs)
- Concrete blocks or mounting anchors
- Aluminum rails and panel clamps
- PV cables, connectors, and conduit
- Sealant (for any penetrations)
- Tilt legs (adjustable, if needed)
📌 Ensure your racking system is compatible with your panel brand and roof type.
How to Mount Solar Panels on a Flat Roof
Here is a step-by-step analysis of the process of mounting solar panels on a flat roof, designed for DIYers who value efficiency, safety, and longevity.
🔩 Step-by-Step Installation
- Inspect and prep the roof
- Clear debris and check for water pooling or damage.
- Mark the layout using chalk lines or laser levels.
- Clear debris and check for water pooling or damage.
- Lay the base racking system
- Position the racking per the manufacturer’s instructions.
- Use ballast blocks or anchors as required.
- Position the racking per the manufacturer’s instructions.
- Set the tilt frames
- Attach tilt legs or angled supports for correct solar orientation.
- Ensure all rows match the desired tilt angle.
- Attach tilt legs or angled supports for correct solar orientation.
- Install solar panels
- Secure panels to rails with clamps.
- Leave space between rows to prevent shading.
- Secure panels to rails with clamps.
- Run the wiring
- Connect panels in series or parallel.
- Use conduit and waterproof boxes for protection.
- Connect panels in series or parallel.
- Connect to the inverter
- Route cabling to your inverter or combiner box.
- Verify connections with a multimeter.
- Route cabling to your inverter or combiner box.
🧮 Tilt Angle & Drainage Consideration
- Tilt angle: Use adjustable mounts or pre-angled frames to achieve the best year-round solar exposure.
- Drainage: Never block roof drains. Elevate panels slightly and maintain clear pathways for rainwater.
Quick Tips:
- South-facing setups work best in the northern hemisphere.
- Leave a minimum of 12″ clearance between the panel edge and the roof perimeter.
Video tutorial on installing solar panels on a flat roof (from YT source)
Tutorial 1: Installing Solar Panels on a Flat Roof
Tutorial 2: Choose the Best Solar Mounting System
Tutorial 3: Installing Solar Panels on Flat Roof (Ballasted Mounting System)
Tutorial 4: Ballasted Solar Panel Racking System (Flat Roof Installs Have Never Been Easier or Faster to Install)
❌ Common Mistakes to Avoid When Installing Solar Panels on a Flat Roof
| Mistake | Why It’s Bad | How to Avoid |
| Skipping roof inspection | Can void roofing warranties | Do a pre-installation check |
| Not using proper sealants | Leads to roof leaks | Use UV-resistant, flexible sealants |
| Incorrect tilt angle | Reduces energy output | Match the tilt to your latitude |
| Poor cable management | Trip hazard + fire risk | Use clips and conduit |
| Overloading ballast weight | Exceeds roof load capacity | Consult a structural engineer if unsure |
| Ignoring wind uplift | Panels may blow off | Use tie-down kits or extra ballast in windy zones |
📌 Pro Advice: Always consult a licensed electrician or solar installer before finalizing your wiring setup.
📚 FAQ:
Q: Can you mount solar panels on a flat roof?
A: Yes! With a ballasted mounting system or properly sealed penetrations.
Q: What is the best tilt angle for solar panels on a flat roof?
A: Around 25°-35°, depending on your latitude.
Q: Does mounting solar panels on a flat roof cause leaks?
A: Only if installed incorrectly. Use proper flashing and sealants to protect the roof.
Q: Are ballasted mounts safe in high winds?
A: Yes, as long as they’re designed for your region’s wind zone.
Q: How much does it cost to mount solar panels on a flat roof?
A: Typically $2,500-$5,000 for a small residential system, including equipment and labor.
Related Post: How to Monitor Solar Panel Output: Tools, Apps & Metrics?
Conclusion,
Ready to Mount Your Solar Panels?
Now you know how to mount solar panels on a flat roof safely and efficiently! Whether you DIY or hire a pro, proper installation ensures long-term savings and energy efficiency.
Next Step: Measure your roof, gather materials, and start your solar journey today!
